NMS Deck Over Sport/Auto Trailers
RESOURCES FOR: NMS
COMPLETE SALES SHEET -
THESE CABINETS SPECIFICALLY FIT OUR NMS SPORT/AUTO TRAILERS AS WELL AS UNIVERSAL OPTIONS.
8.5 Wide Assembly #1
8.5 Wide Assembly #2
CAB-PKG01
CAB-PKG01 ASSEMBLY #1
UPPER CABINETS
BASE CABINETS

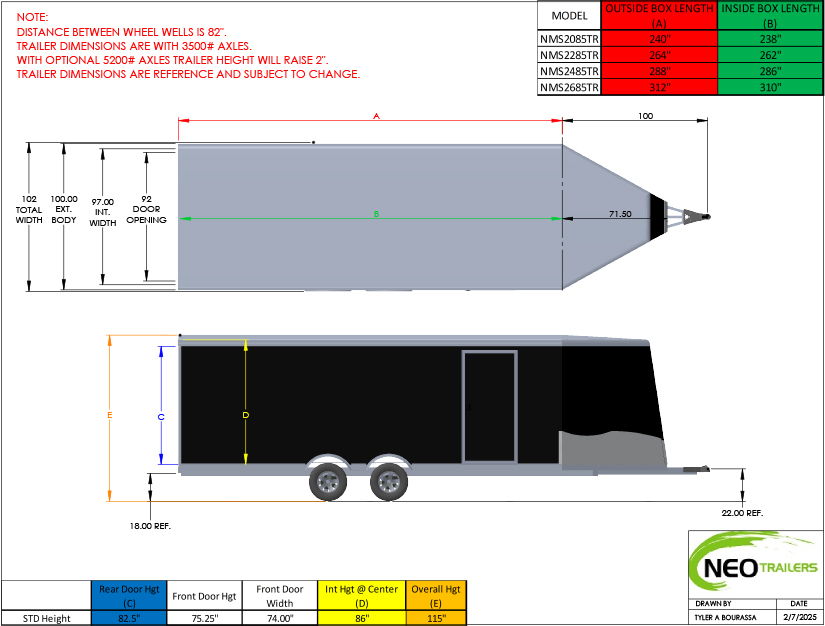

NMS TRAILER DIMENSIONS - FULL WEIGHT LIST
- TRAILER DIMENSION COMPARISON
- TIE DOWN/FLOOR DIAGRAMS
- UNIVERSAL ELECTRICAL OPTIONS
OPTIONS: NMS
-
- 030 BLACK
- 030 BLUE
- 030 CHARCOAL
- 030 ORANGE
- 030 PEWTER
- 030 RED
- 030 SILVER
- 030 WHITE
- MATTE BLACK 030
- OLIVE DRAB GREEN, FLAT RATE UPCHARGE PER TRAILER
- YELLOW, FLAT RATE UPCHARGE PER TRAILER
- JD, TWO TONE
- MAPLE LEAF TWO TONE
- MICHIGAN SLASH
- MIKAD TWO TONE
- NEO TWO TONE
- SLASH, CHROME, STRAIGHT, SINGLE TONE
- SLASH, TRIBAL & GALAGAN, SINGLE AND TWO TONE
- STRAIGHT TWO TONE
- TAB Slash
- FRONT RAMP, ADD ON, EXTERIOR GRADE PLYWOOD
- FRONT RAMP, ADD ON, EXTRUDED ALUMINUM UPGRADE
- FRONT RAMP, ADD ON, MARINE DECK PLYWOOD
- FRONT RAMP, ADD ON, NUDO UPGRADE
- RAMP DOOR SKI GUIDE, ADD ON, MUST HAVE RAMP
- RAMP DOOR THRESHOLDS, FRONT AND REAR, MUST HAVE BOTH
- RAMP DOOR TRANSITION FLAP, MUST HAVE RAMP
- 60" REMOVABLE EXTENSION RAMPS
- EXTRUDED ALUMINUM
- MARINE DECK PLYWOOD
- NUDO PLYWOOD
- REINFORCEMENT, 4 TUBES
- THRESHOLD
- TRANSITION FLAP
- ADD 15" X 30" WINDOW
- ADD ALUMINUM BAR LOCK, NOT AVAILABLE WITH RV DOOR
- FLUSH LOCK, ROAD SIDE
- RV DOOR WITH WINDOW, SCREEN DOOR INCLUDED
- ACCESS DOOR 36"X36"
- ACCESS DOOR, FOAM CORE, FLUSH LOCK, 30" X 24", SIDE HINGE
- AWNING DOOR 4'X6'
- FUEL DOOR 14" X 14", FLUSH LOCK
- GENERATOR DOOR 30"W X 24"H, VENT, TOP HINGE
- SHOW CAR ACCESS DOOR 48"X48"
- EXTRA 12V DOME LIGHT
- EXTRA 48" LED, 120V
- LED PACKAGE, 2 LIGHTS, 12V, 39"
- LED PACKAGE, 4 LIGHTS, 12V, 39"
- LOADING LIGHT, EXTERIOR, W/ INTERIOR SWITCH
- POWER PACKAGE 1, LED, 110V, 48"
- POWER PACKAGE 2, LED, 110V, 48"
- POWER PACKAGE 3, LED, 110V, 48"
- POWER PACKAGE 4, LED, 110V, 48"
- UNDER CABINET LIGHTS, PAIR
- 12V ACCESSORY BATTERY, WIRED, WHITE BOX 15"X10"X10"
- 3 WAY SWITCH 120V
- 3 WAY SWITCH 12V
- 30 AMP PANEL W/ 1, 15 AMP BREAKER
- 50 AMP PANEL W/ 1, 15 AMP BREAKER
- AC 13,500 LOW-PRO W/ (ADD BRACE AND WIRE, 50 AMP PANEL)
- EXTRA 120V SWITCH
- EXTRA 12V SWITCH
- EXTRA DOME LIGHT, LED, 12V
- EXTRA GFI RECEPT
- EXTRA MARKER LIGHT, LED
- EXTRA RECEPT, 120V
- EXTRA TAIL LIGHTS, LED, PAIR
- LOADING LIGHT, EXTERIOR W/ SWITCH
- MOTOR BASE PLUG, STANDARD LOCATION ONLY
- RACE LIGHT; SIMILAR TO A FLOOD OR SCENE LIGHT
- REVERSE LIGHTS, PAIR
- There are no options available for this model.
- CHECKERBOARD VINYL OVERLAY
- COIN RUBBER OVERLAY
- EXTRUDED ALUMINUM
- MARINE DECK PLYWOOD FLOOR, 3/4"
- NUDO (3/4" DUAL HDP LAMINATED PLYWOOD)
- CEILING, 030 ALUMINUM (WHITE 030 ALUMINUM CORNERS INCLUDED)
- CEILING, WHITE VINYL(030 ALUMINUM CORNERS, WHITE, INCLUDED)
- CORNER TRIM, STANDARD COLORS, 030 ALUMINUM
- Trim, Colors (with Ceiling)
- 030 WHITE ALUMINUM
- 030 WHITE ALUMINUM +12" HEIGHT
- 030 WHITE ALUMINUM +6" HEIGHT
- 3/8" PLYWOOD
- WHITE VINYL
- WHITE VINYL AND 3/4"X12" SCUFF
- 12V ROOF SUPER VENT
- BLACK OR WHITE PLASTIC SIDE VENT(3")
- BRACE/WIRE FOR AC
- MANUAL ROOF VENT
- ROOF VENT COVER MAXXAIR
- SALEM WALL VENT AND GARNISH
- WINDOW, 15"X30", SLIDER, SCREEN
- WINDOW, 30"X30", SLIDER, SCREEN
- 3500# ELECTRIC JACK
- 36" STONE GUARD
- 48" STANDARD STONE GUARD
- ADDITIONAL ALUMINUM GRAB HANDLE
- ADDITIONAL RAMP DOOR RUBBER
- ALUMINUM LADDER
- ALUMINUM SKID PLATES, PAIR
- ALUMINUM SLIDE OUT STEP, TUBULAR
- AWNING
- BOGIE WHEELS, PAIR
- CABLE HATCH, BLACK(EXTENSION CORD ACCESS)
- LADDER RACKS, INSTALLED, PAIR
- NEO PROSTAB JACKS, TELESCOPING TUBULAR ALUMINUM
- D RING, HEAVY DUTY, 5000#, RECESSED
- D RING, MEDIUM DUTY, 1200#, SURFACE MOUNT
- E TRACK, FLOOR, SURFACE MOUNT
- E TRACK, WALL SURFACE MOUNT
- IN FLOOR BATTERY BOX, NO WIRING, 11"X13"X11"
- INSULATION, POLYSTYRENE 1", CEILING
- INSULATION, POLYSTYRENE 1", WALLS
- L TRACK, ALUMINUM, RECESSED, FLOOR
- NEO ALUMINUM FOLD UP BENCH 48"
- SWIVEL TIE DOWNS, RECESSED
- WINCH PLATE, UNDER FLOOR
- 3500# TORSION, ALUMINUM RADIALS 205 75 R15
- 3500# TORSION, NXT ALUMINUM RADIALS 205 75 R15
- 5200# TORSION ALUMINUM RADIALS 225 75 R15
- 5200# TORSION NXT ALUMINUM 225 75 R15
- 5200# TORSION NXT ALUMINUM 235 80 R16
- 5 BOLT, 15" ALUMINUM RADIALS, 205 75 R15
- 5 BOLT, 15" NXT ALUMINUM RADIALS 205 75 R15
- 5 BOLT 15" ALUMINUM RADIALS 205 75 R15
- 5 BOLT 15" NXT ALUMINUM RADIALS 205 75 R15
- 5 BOLT 15" SILVER MOD RADIALS 205 75 R15
- 6 BOLT 15" ALUMINUM RADIALS 225 75 R15
- 6 BOLT 15" NXT ALUMINUM RADIALS 225 75 R15
- 6 BOLT 15" SILVER MOD RADIAL 225 75 R15
- 6 BOLT 16" NXT ALUMINUM RADIALS 235 80 R16
PRINT OPTIONS WORKSHEET YOU MIGHT ALSO LIKE...

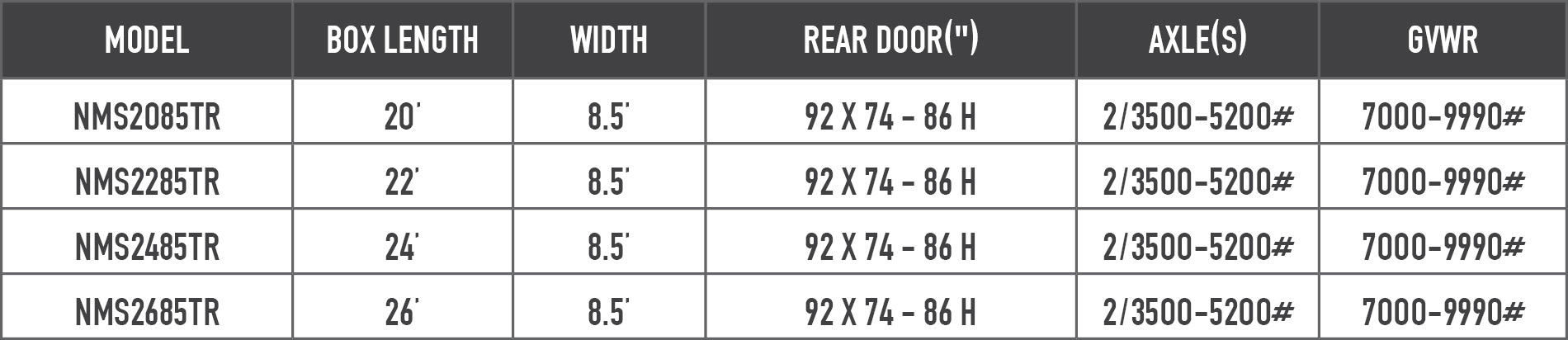

MODEL WIDTH AXLES STYLE GVWR APPROX WEIGHT (LBS) NMS2085TR 8.5 2-3500# Torsion 7000# 2450 NMS2285TR 8.5 2-3500# Torsion 7000# 2600 NMS2485TR 8.5 2-3500# Torsion 7000# 2750 NMS2685TR 8.5 2-3500# Torsion 7000# 2900
