CLASSIC CAR HAULER TRAILER
{ NCV = NEO CAR HAULER V-NOSE }
8.5 Wide Assembly #1
8.5 Wide Assembly #2
CAB-PKG01
CAB-PKG01 ASSEMBLY #1
BASE CABINETS
STANDARD PLYWOOD FLOOR, OPTIONAL HD RINGS
OPTIONAL PROSTABS
RESOURCES FOR: NCV+NCB

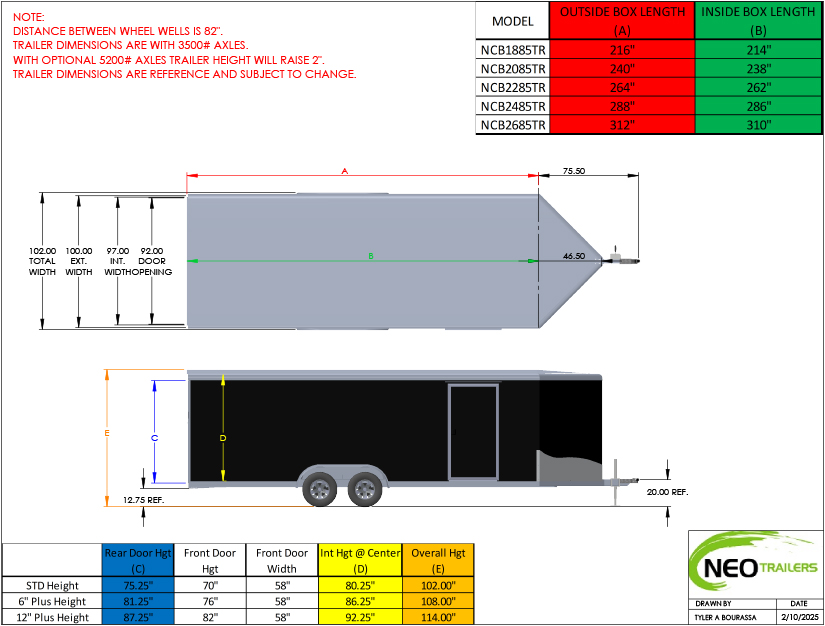

ALL OPTIONS WORKSHEET- NCB 8.5 WIDE TRAILER DIMENSIONS

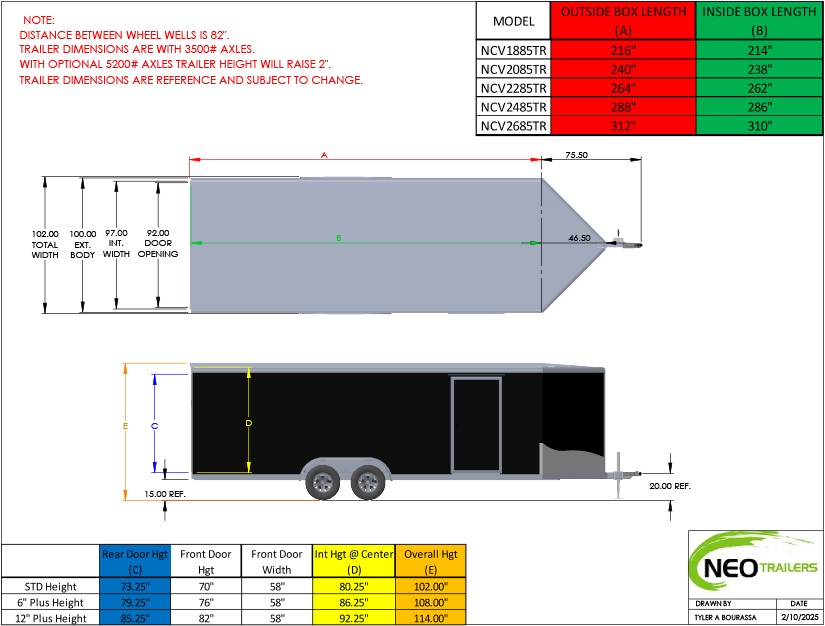

- NCV 8.5 WIDE TRAILER DIMENSIONS

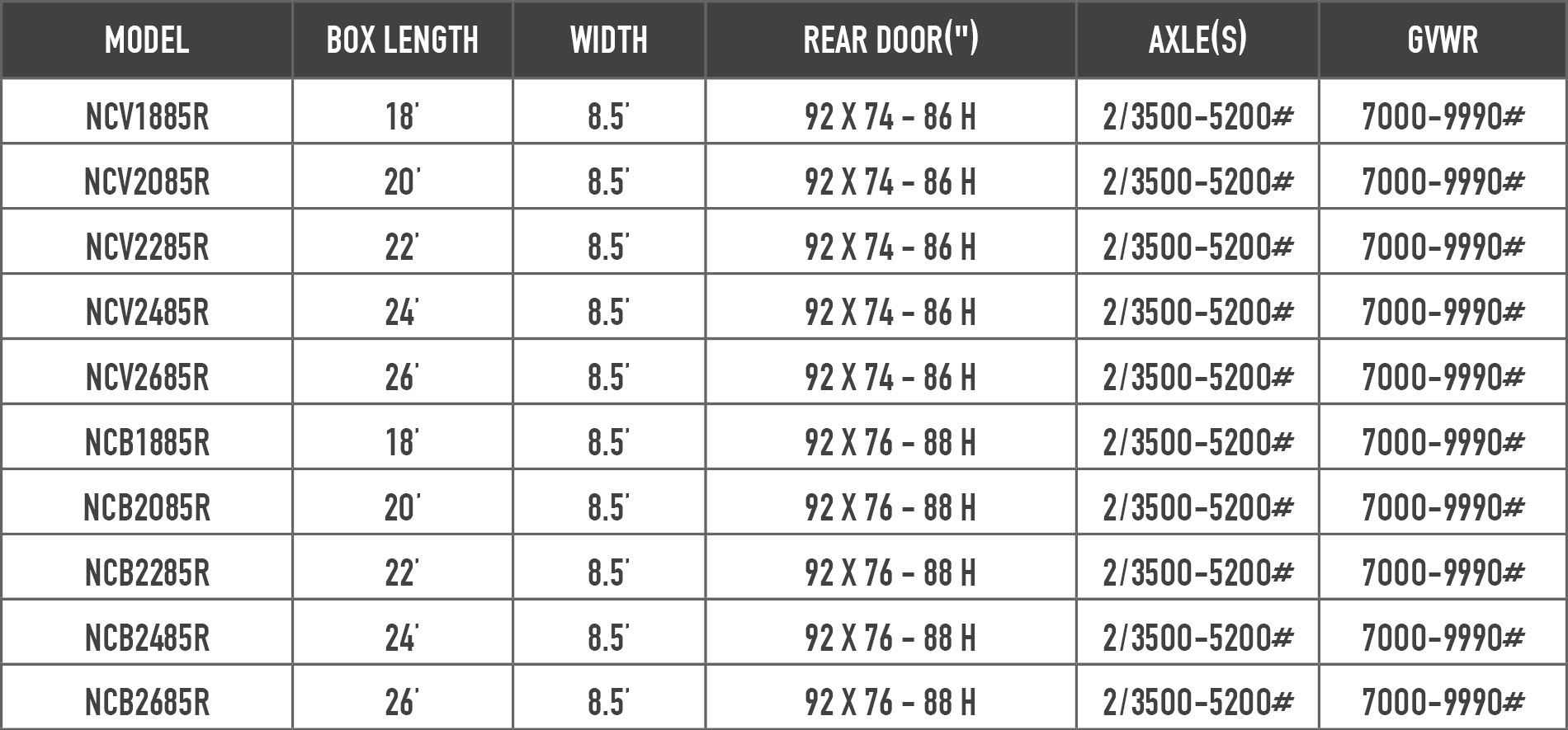

- DIMENSION/WEIGHT COMPARISON
- TIE DOWN/FLOOR DIAGRAMS (NCB)
- TIE DOWN/FLOOR DIAGRAMS (NCV)
- UNIVERSAL ELECTRICAL OPTIONS
STANDARD FEATURES:
- -ORIGINAL CAR HAULER AND BEAVERTAIL COUNTERPART
- -BEAVERTAIL(NCB ONLY): 4'(20-24')OR 6'(26')
- -(4) - 5000# D RING TIEDOWNS, RECESSED
- -EXTRUDED ALUMINUM ROOF COVE, TIG WELDED
- -INTEGRATED INLINE TONGUE, OPTIONAL A-FRAME
- -ALL ALUMINUM, BONDED EXTERIOR SKIN
- -SAFETY CHAINS, 5/16"
- -2 5/16" COUPLER, ZINC COATED
- -7-WAY PLUG WIRING WITH INTERIOR JUNCTION
- -16" OC FLOOR, 3/4" PLYWOOD
- -16" OC ROOF, SEAMLESS ALUMINUM
- -16" OC WALLS, WHITE VINYL
- -36" FLUSH LOCK CURB SIDE DOOR
- -3/4" PLYWOOD FLOOR
- -WHITE VINYL WALLS
- -MTec CABLELESS RAMP SYSTEM
- -PROEDGE, TAPERED RAMP EXTRUSION
- -NXP STAINLESS RAMP LATCH
- -24" ATP STONEGUARD
- -12V LED INTERIOR LIGHTS(2)
- -LED EXTERIOR LIGHTS
- -3500# DEXTER SPRUNG AXLES, SELF ADJUSTING BRAKES
- -HUBS, EZ LUBE, 5 LUG X 4.5"
- -205 75 R15, C RATED, 15" X 5" BLACK STEEL
- -7000# GVWR, OPTIONAL 9990#
